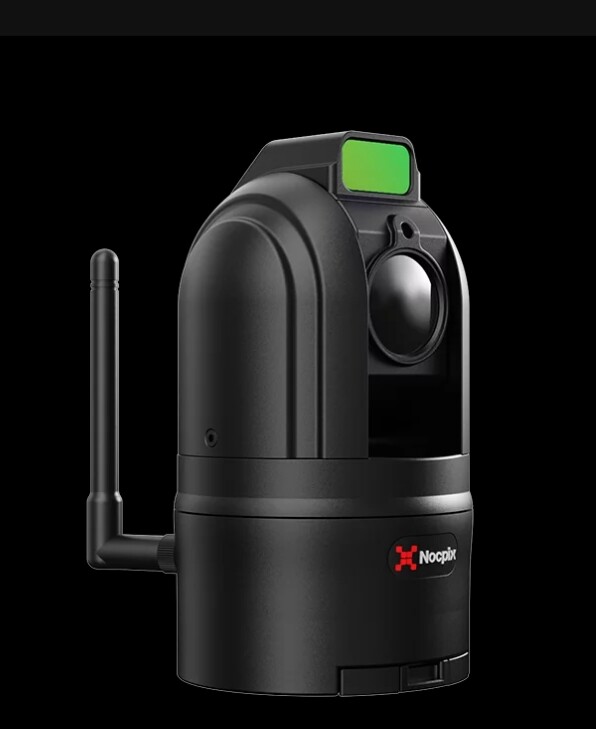

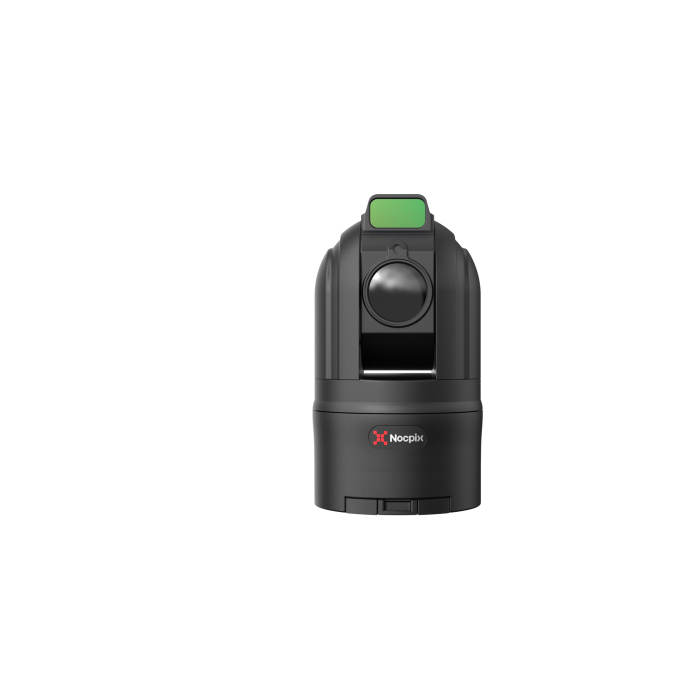

Thermal Dome Camera M6T25S, 640×512 & 12µm

€4,500.00

In stock

Only 1 left

SKU

6977713400301

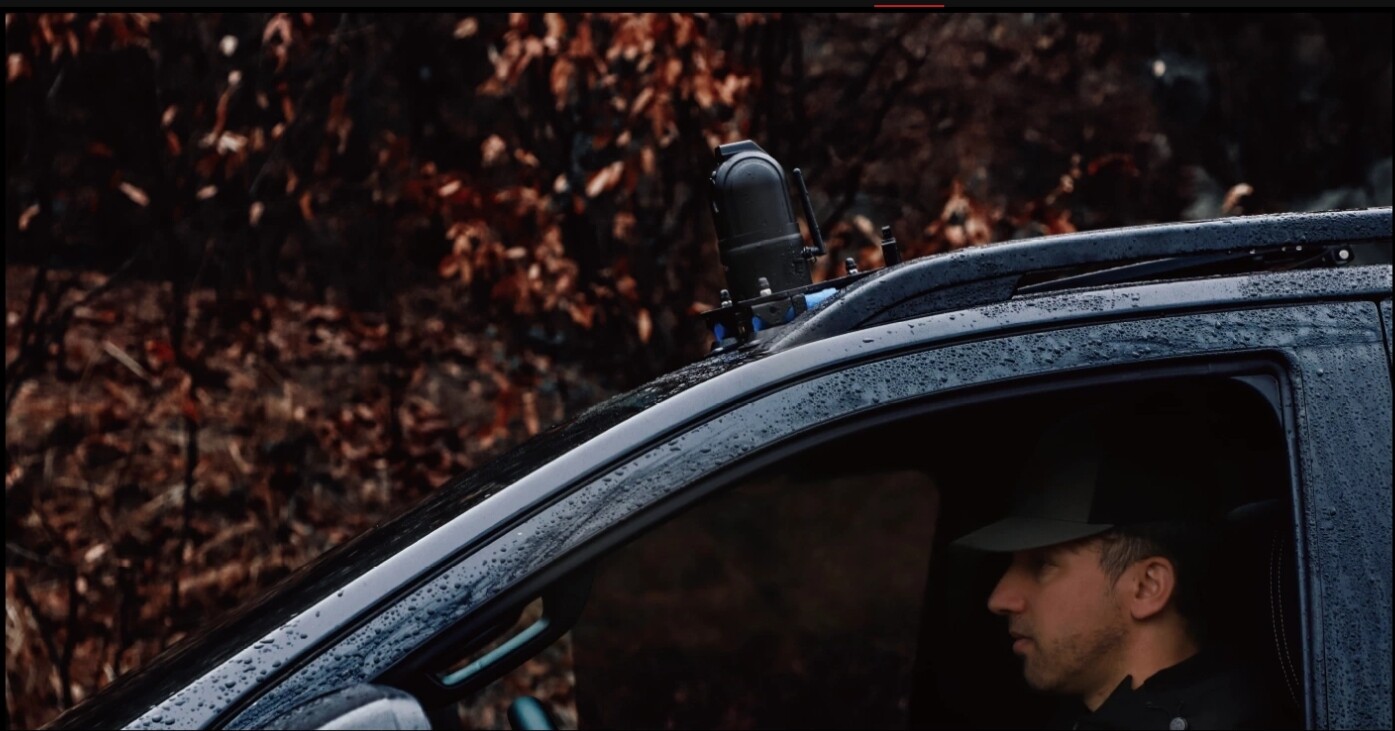

Introducing the MT series, the innovative dome scanner from Nocpix, designed specifically for hunting. It’s your perfect choice not only for driving while hunting but also adaptable to various hunting methods and habits. Equipped with cutting-edge AI models and high-performance computing power, the MT ensures a stable performance even while driving and excels at accurately detecting, locking onto, and tracking prey, delivering high-quality images and an exceptional hunting experience.

model M6T25S

Thermal sensor 640×512 & 12μm

NETD, mK ≤15

Frame rate, Hz 50

Objective lens, mm 25 F1.0

Field of view(H×V), ° 17.5x14

Detection/Recognition/Identification, m 2300/590/290

Magnification, × x1,x2,x4

Azimuth range 360° continuous rotation
Pitch range, ° -90~+90

Motor Brushless motor/low noise/stable performance

Number of preset points Up to 8

Auto cruise Trace: Cruise in the order of preset points

Battery type Battery pack: chargeable&replaceable,7hx2

Reserved power supply 12V DC on cable

Safety class for laser Class 1

Max. rangefinder distance, m 1200

Fixed mounting With mounting bracket

IP rating IP56

Operating temperature, ℃ -20~+60

Weight, g 889

Dimension, mm Φ80.2×146.6

Details

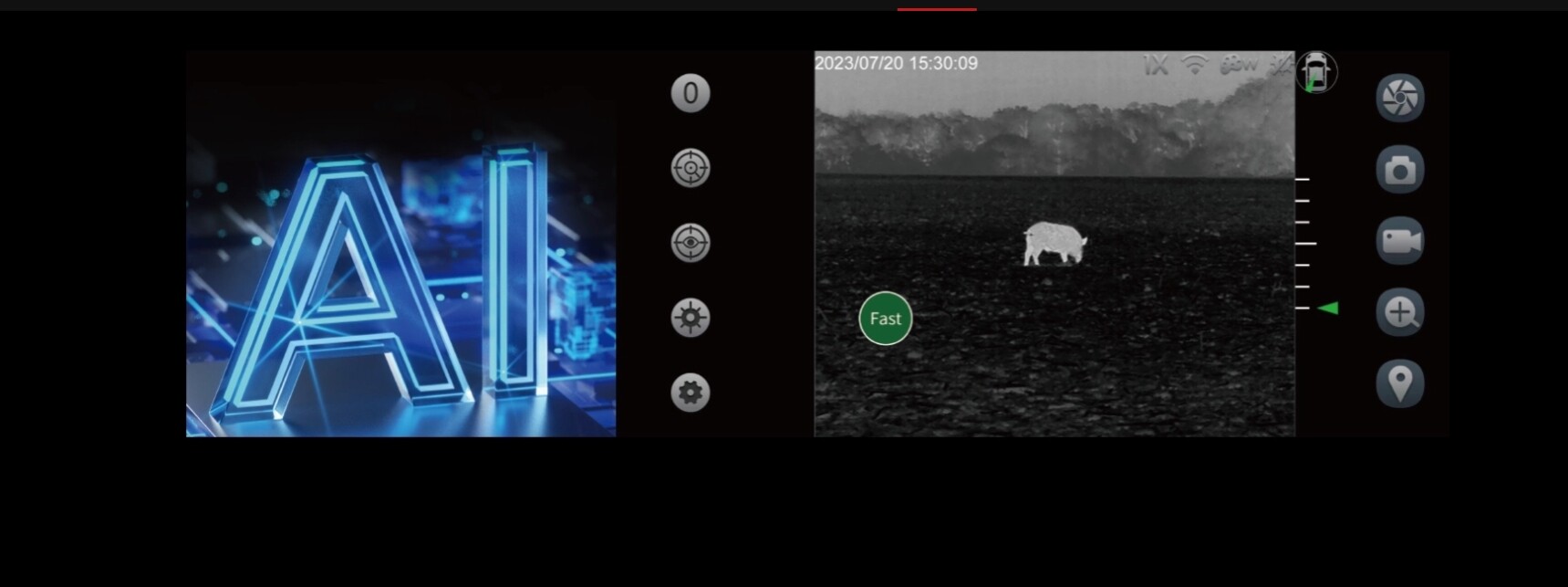

AI Intelligent performance

Powered by the YOLO V5 deep learning model and a 2T computing power, this system is designed to enhance your hunting experience. The deepl learning model, trained on a vast dataset, enables rapid automatic recognition and tracking of prey, with precise bounding boxes to mark targets. This makes the entire hunting process—identification, targeting, and tracking—much easier and smoother, reducing the effort required to complete each step all on your own.

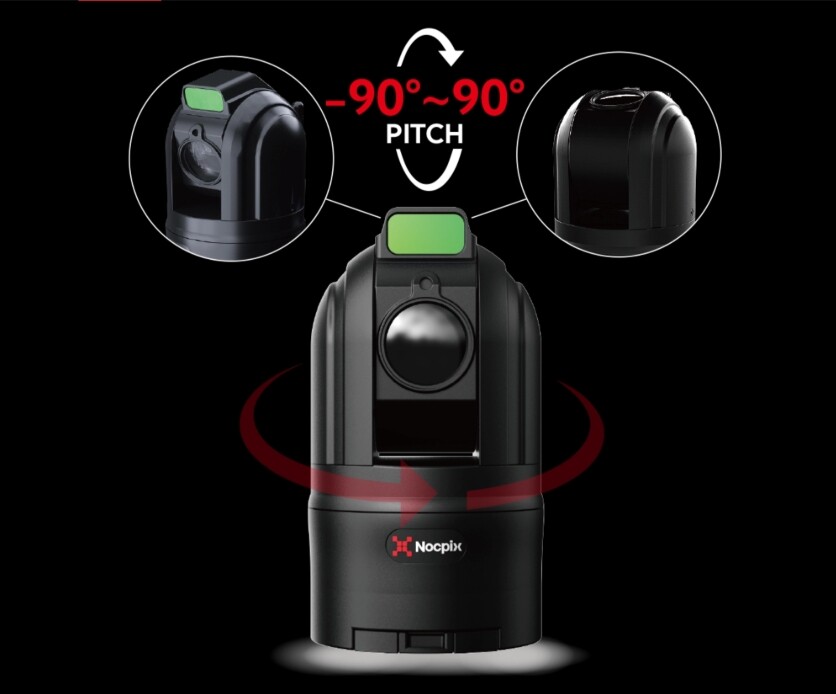

Brushless 360° Panoramic View 90° Tilt Range

The MT offers a wide 360° panoramic view with a 90° tilt range, providing full coverage. This ensures comprehensive, seamless tracking of your prey barely without any blind spots.

Ultimate Stablization

2-axis Stablization enables MT with the ability of delivering a stable image, the automatic calibration corrects lens shifts caused by road bumps or any external environmental factors, maintain a consisting direction.

Extreme Silent User Experience

The M6T25S applied a brushless motor for 360-degree horizontal rotation, and dynamic balancing design, which means It operates at low decibel level during rotation and pitching, ensuring your hunting experience remains uninterrupted and enjoyable.

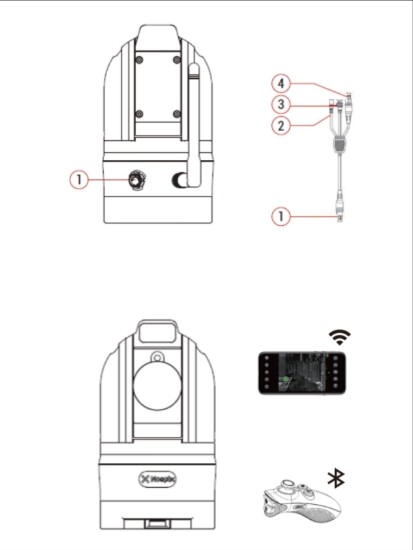

Multi Connection & Terminal Displaying Way

To accommodate different usage habits and scenarios, two connection methods are supported: cable and WiFi. The cable connection provides relatively more stable image transmission, while WiFi offers a more convenient and wireless experience. Real-time image transmission is available on any device with the Nocpix App installed, including but not limited to iPads, mobile phones etc.
